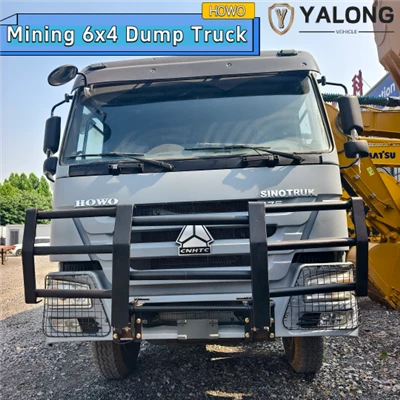

Sinotruk HOWO 6×4 Heavy Duty Dump Truck – 336HP Euro 3
White HOWO 6x4 Dumptruck 336HP Cab Steering Wheel Interior
White HOWO 6x4 Dumptruck 336HP Dump Bed Lifted Rear Side View
White HOWO 6x4 Dumptruck 336HP Engine Side View
White HOWO 6x4 Dumptruck 336HP Hydraulic Lifting Cylinder
White HOWO 6x4 Dumptruck 336HP Rear Axle Undercarriage
White HOWO 6x4 Dumptruck 336HP Rear Tire & Suspension Detail
Sinotruk HOWO 6 × 4 Hnyav Duty Dump Truck - 336HP Euro 3
Cov ntawv thov raug:
Mining thiab quarry khoom thauj
Txoj kev tsim kho & kev ua haujlwm hauv av
Kev tsim kho hauv nroog thiab kev tshem tawm pov tseg
Tej cargo luv -kev thauj mus los
Cov neeg ua haujlwm Fleet nrhiav tus nqi qis ntawm cov tswv cuab
Peb txhawb customized lub cev xim thiab xaiv configuration kom haum koj lub zos ua hauj lwm raws li txoj cai.
Yog tias koj tab tom nrhiav ib qho nyuaj, qis- kev tu lub tsheb ua haujlwm rau kev tsim kho lossis tsuas, Sinotruk HOWO 6 × 4 pob tseg tsheb thauj khoom no yog qhov kev xaiv txhim khu kev qha. Nws khiav ntawm 336HP Euro 3 raws li lub cav, ua ke nrog cov pov thawj pem hauv ntej- nqa hydraulic system thiab 19.32 cbm hnyav- lub thawv pov tseg, tuav 30- tuj loads yooj yim. Ua rau txoj kev ntxhib thiab siv zog ua haujlwm txhua hnub, nws sib npaug zog, kev ua raws li kev ua raws cai thiab cov nqi khiav zoo.
Product Overview
Lub HOWO 6 × 4 tipper yog ib qho ntawm Sinotruk cov khoom pov thawj thiab nrov tshaj plaws, kev ntseeg siab los ntawm cov tswv nkoj thiab cov neeg ua haujlwm tsim kho thoob plaws Africa, Southeast Asia thiab Middle East tau ntau xyoo. Peb paub tias lub sijhawm poob rau ntawm qhov chaw raug nqi koj lub sijhawm thiab nyiaj txiag, yog li cov qauv no tau tsim nrog cov qauv yooj yim, ruaj khov thiab muaj cov khoom siv dav dav - ua kom kho thiab kho sai thiab pheej yig.
Qhov no 336HP Euro 3 version hloov kho cov qauv emission thaum khaws cov classic powertrain kev ntseeg tau. Nws muab lub zog muaj zog rau qhov chaw ntxhab thiab tag nrho - thauj khoom thauj, khiav ntawm cov roj av dav dav, thiab haum zoo rau ob qho tib si hauv nroog kev tsim kho thiab thaj chaw deb mining.
Lub zog & Chassis Performance
-
Hauv qab lub tsheb tavxij yog 336 horsepower Euro 3 diesel cav, zoo -paub txog nws lub neej ua haujlwm ntev thiab qis qis. Nws yog txuam nrog HW19710 gearbox kom du, txhim khu kev qha hloov mus thoob txhua qhov kev ua haujlwm. Lub HF9 pem hauv ntej qag thiab HC16 hnyav- lub luag haujlwm rear qag yog tsim los rau cov khoom hnyav tas li, thiab ZF8118 lub zog ua haujlwm muab cov neeg tsav tsheb ruaj khov, kev tswj xyuas meej txawm nyob hauv av tsis sib xws.
Lub chassis thav duab thiab nplooj nplooj hlav ncua kev cuam tshuam los ntawm txoj kev ntxhib uas tsis tau ua haujlwm zoo. Haum nrog 12.00R20 radial log tsheb, lub tsheb thauj khoom muab kev tuav zoo thiab hnav tsis kam, txawm tias khiav ntawm txoj kev loj los yog av nkos.
Lub tsheb yog nruab nrog 5600 × 2300 × 1500 mm cargo lub thawv nrog tag nrho ntim ntawm 19.32 cubic meters. Cov phaj hauv pem teb yog 8 hli tuab, thiab sab & nram qab daim hlau yog 6 hli tuab - ruaj txaus los tiv thaiv kev puas tsuaj los ntawm pob zeb, pob zeb thiab cov khoom siv khib nyiab.
Nws siv lub hauv ntej -mounted hydraulic lifting system rau unloading. Piv nrog rau nruab nrab -mount designs, cov qauv nqa pem hauv ntej khiav ruaj khov, ua rau muaj kev ntxhov siab tsawg dua ntawm lub chassis, thiab muaj lub neej ua haujlwm ntev dua txawm tias niaj hnub siv ntau zaus.
Cab & Tsav Tsheb Experience
Lub HW76 cab nrog ib lub bunk yog tsim los siv rau ntawm - siv qhov chaw. Nws muaj qhov dav dav tag nrho - puag ncig pom kev, cov txheej txheem kev tswj hwm thiab kev pw tsaug zog zoo rau cov neeg tsav tsheb kom so ntawm kev ua haujlwm. Sab hauv yog yooj yim, ruaj thiab yooj yim los ntxuav - zoo haum rau kev tsim kho plua plav thiab mining ib puag ncig. Cov qauv cab kuj tseem muaj kev tiv thaiv zoo dua rau cov neeg tsav tsheb.
Tej kev siv
- Mining thiab quarry khoom thauj
- Txoj kev tsim kho & kev ua haujlwm hauv av
- Kev tsim kho hauv nroog thiab kev tshem tawm pov tseg
- Tej cargo luv -kev thauj mus los
- Cov neeg ua haujlwm Fleet nrhiav tus nqi qis ntawm cov tswv cuab
Peb txhawb customized lub cev xim thiab xaiv configuration kom haum koj lub zos ua hauj lwm raws li txoj cai.
Cov duab ntxaws
Kev siv dav
HOWO Dump Truck yog dav siv rau:
Mining tej yaam num
Kev ua haujlwm hauv chaw txua txiag zeb
Cov chaw tsim kho
Txoj kev tsim kho
Infrastructure tej yaam num
Earthmoving
Xuab zeb kev thauj mus los
Kev thauj mus los pob zeb
Coal tsheb thauj mus los
Aggregate thauj
| Khoom Specification | Paub meej |
|---|---|
| Qauv | ZZ3257N3847A |
| Tsav hom | 6×4 |
| Lub cav fais fab | 336hp ua |
| Emission Txuj | Euro 3 |
| Txee | HW76, ib pob |
| Zuag qhia tag nrho Dimensions (L × W × H) | 8500 × 2500 × 3600 hli |
| Pob tseg Box Loj (L × W × H) | 5600 × 2300 × 1500 hli |
| Pob tseg Box Volume | 19.32 Nws |
| Pob tseg Box Thickness | Hauv qab 8mm, Sab & Tsheb 6mm |
| Rated Loading Capacity | 30 Tons |
| Lifting System | Pem hauv ntej -mounted hydraulic nqa |
| Kev sib kis | HWV 19710 |
| Pem hauv ntej qag | HF 9 |
| rear qag | HC 16 |
| Steering System | ZF8118 |
| Lub log | 12.00R20 radial log tsheb |
| Xim | Customizable |
Ntim & Shipping
Cov lus teb rau cov neeg siv khoom
FAQ
Q: 1.Peb yog leej twg?
A: YALONG'S lub hauv paus chaw haujlwm nyob hauv Shandong, Suav. Txij li xyoo 2018, peb tau muag rau Africa (30.00%), South Asia (20.00%), Southeast Asia (20.00%), Middle East (20.00%), thiab kev lag luam hauv tsev (10.00%). Muaj li ntawm 11-50 tus neeg nyob hauv peb lub hoobkas.
Q: 2.Vim li cas koj yuav tsum yuav los ntawm peb tsis yog los ntawm lwm tus neeg muag khoom?
A: Peb ua raws li kev lag luam lub tswv yim ntawm "zoo ua ntej, cov neeg siv khoom ua ntej" thiab tau txais kev ntseeg siab thiab kev txhawb nqa ntawm cov neeg siv khoom hauv tsev thiab txawv teb chaws nrog cov khoom zoo, kev pabcuam zoo, thiab cov nqi muag khoom tsim nyog. Lub teb chaws xa tawm tseem ceeb thiab cheeb tsam yog: Africa, Southeast Asia, Central Asia, South America thiab lwm qhov chaw. Peb muaj cov kws tshaj lij tsim thiab tsim pab pawg uas tuaj yeem tsim thiab tsim lub tsheb uas tsim nyog rau koj raws li koj xav tau; nplua nuj export kev, paub txog cov txheej txheem export thiab yuav tsum tau ntawv pov thawj ntawm ntau lub teb chaws, thiab tuaj yeem xa koj lub tsheb rau koj sai dua; Peb Nrog thawj - cov cuab yeej tsim khoom hauv chav kawm, cov cuab yeej muaj zog thiab cov txheej txheem kev sim siab, peb tuaj yeem muab cov tsheb ruaj khov thiab txhim khu kev qha rau koj.
Q: 3.Peb tuaj yeem lav qhov zoo?
A: Ib txwm ua ntej- qauv tsim ua ntej ntau lawm; Ib txwm soj ntsuam zaum kawg ua ntej xa khoom;
Q: 4.Vim li cas koj yuav tsum yuav los ntawm peb tsis yog los ntawm lwm tus neeg muag khoom?
A: YALONG yog ib lub tuam txhab tshwj xeeb hauv kev xa tawm cov tsheb thauj khoom siv, muab ib qho kev pabcuam - nres xws li kev yuav khoom, kev npaj, tshuaj xyuas, tshaj tawm kev lis kev cai, kev thauj mus los, thiab kev lis kev cai ntawm qhov chaw rau kev lis kev cai txawv teb chaws.
