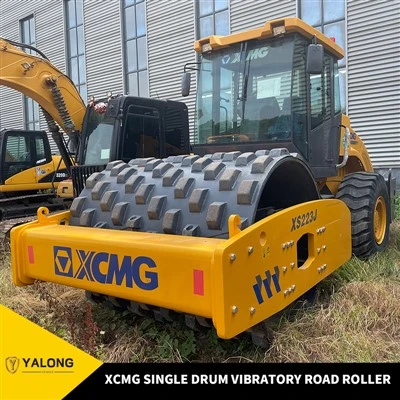

XCMG-XS233J Single Steel Wheel Vibratory Road Roller
XCMG-XS233J Single Steel Wheel Vibratory Road Roller suppliers
XCMG-XS233J Single Steel Wheel Vibratory Road Roller factory
XCMG-XS233J Single Steel Wheel Vibratory Road Roller best
XCMG-XS233J Single Steel Wheel Vibratory Road Roller high quality
XCMG-XS233J Single Steel Wheel Vibratory Road Roller price
XCMG-XS233J Single Steel Wheel Vibratory Road Roller high quality
XCMG-XS233J Ib Leeg Steel Wheel Vibratory Road Roller
[XCMG-XS233J Ib Leeg Steel Log Vibratory Road Cov Menyuam]
Hauv kev tsim kho vaj tse thiab kev tsim vaj tsev, qhov zoo ntawm cov khoom siv compaction ncaj qha txiav txim siab txog kev ua neej nyob thiab kev nyab xeeb ntawm cov haujlwm engineering. XCMG-XS233J, raws li ib qho - hlau- lub log vibratory roller tshwj xeeb uas tsim los rau hnyav- cov dej num, nrog rau nws cov kev ua tau zoo tshaj plaws thiab kev ntseeg tau zoo, tau dhau los ua cov khoom siv rau ntau lub tuam txhab tsim kho. Cov qauv no yog tsim los ntawm XCMG Group thiab tau txais txiaj ntsig ntawm cov khoom lag luam hauv kev tsim kho tshuab ntau xyoo dhau los, txhawm rau muab cov neeg siv khoom muaj txiaj ntsig, kev lag luam thiab ntev ntev - kev ua haujlwm kev ua haujlwm ntev.
Kev ua tau zoo, muaj peev xwm tiv taus cov xwm txheej hnyav
XCMG-XS233J yog nruab nrog lub cav muaj zog nrog lub zog tso zis ntawm 185 horsepower (136 kilowatts), muab lub zog txaus rau nws txoj haujlwm tsis tu ncua hauv thaj chaw nyuaj. Nws qhov hnyav ua haujlwm yog kwv yees li 48,502 phaus (kwv yees li 22 tons), suav nrog cov kev qhia tshwj xeeb ntawm cov tsheb hnyav, muaj peev xwm ua kom muaj zog zoo li qub thiab sib sib zog nqus vibration quab yuam, ua haujlwm zoo kom ntseeg tau tias cov ntaub ntawv roadbed thiab asphalt nto txheej mus txog qhov tsim kom ceev. Txawm hais tias nws yog kev tsim kho ntawm - qib highways, tshav dav hlau runways, dams, los yog loj industrial foundations, lub XCMG-XS233J muaj peev xwm daws tau ntau yam kev cov nyom nrog nws zoo heev compaction efficiency thiab qhov tob, ho txhim kho txoj kev loj hlob.
► Humanized tsim thiab kev ua haujlwm zoo heev
Nrog rau kev nplij siab ntawm cov neeg khiav dej num thiab kev qaug zog tshwm sim los ntawm kev ua haujlwm ntev - lub sijhawm ua haujlwm, XCMG-XS233J txais yuav tsim lub cab kaw. Qhov kev tsim no tsis tsuas yog muab qhov chaw nyab xeeb thiab tsom mus rau kev ua haujlwm rau tus neeg tsav tsheb, tab sis kuj tseem cuam tshuam cov suab nrov sab nraud thiab cov plua plav cuam tshuam. Ua ke nrog cov txheej txheem kev vibration siab heev (xws li daim ntawv thov tsis yog - cuam tshuam eccentric mechanism), tus qauv no tuaj yeem hla dhau ntawm thaj chaw resonance thaum pib- nres kev vibration, txo qhov co thiab cuam tshuam lub suab nrov hauv lub cab, thiab ua rau kev tsav tsheb zoo dua. Qhov ntev ntawm kev thauj mus los ntawm XCMG-XS233J (ntev 248.82 ntiv tes, dav 94.09 ntiv tes, qhov siab 125.98 ntiv tes) tau zoo-tsim, ua kom yooj yim rau kev thauj mus los ntawm qhov chaw sib txawv.
Txhim khu kev ntseeg thiab ruaj khov, txo tag nrho cov nqi ntawm lub neej
Rau kev tsim kho tshuab, kev ntseeg siab txhais tau tias muaj ntau dua thiab cov nqi kho mob qis dua. XCMG-XS233J tsom rau kev tsim qauv ruaj khov thiab ruaj khov hauv nws cov qauv, thiab tag nrho cov khoom tseem ceeb tau dhau los ua qhov kev sim ua kom ntev. Nws lub cav uas ua raws li theem V / Tier 4 kawg emission qauv tsis yog tsuas yog ib puag ncig tus phooj ywg thiab muaj txiaj ntsig, tab sis kuj sawv cev rau qib siab ntawm kev siv hluav taws xob tam sim no. Xaiv XCMG-XS233J txhais tau tias koj tau txais kev cog lus, siab - tus nqi khaws cia, thiab cov khoom siv uas tuaj yeem tsim muaj txiaj ntsig nyob rau lub sijhawm ntev. Nws yog ib tus neeg koom tes zoo los pab koj ua tiav hauv koj txoj kev lag luam.
khoom nthuav dav kos duab
Khoom Description
Loj thiab Load Parameters
| Parameter | Tus nqi |
|---|---|
| Kev khiav hauj lwm hnyav nrog cab (kg) | 22000 |
| Pem hauv ntej qag load (kg) | 11000 |
| rear qag load (kg) | 11000 |
| Pem hauv ntej log static linear load (N / cm) | 516 |
| Ua haujlwm hnyav chav kawm | Tshaj 20 tons |
Compaction Mechanism Parameters
| Parameter | Tus nqi |
|---|---|
| Kev vibration zaus (Hz) | 28/33 |
| Nominal amplitude (hli) | 1.86/0.93 |
| Excitation quab yuam (kN) | 374/290 |
| Ua haujlwm dav / Nruas dav (mm) | 2130 |
| Nruas txoj kab uas hla (mm) | 1600 |
Mobility Performance Parameters
| Parameter | Tus nqi |
|---|---|
| Kev kub ceev (km / h) | 9.4 |
| Tsawg mus ncig ceev (km / h) | 2.95 |
| Theoretical nce toj muaj peev xwm nrog kev co (%) | 30 |
| Yam tsawg kawg nkaus tig radius (mm) | 6500 |
Cav
| Parameter | Tus nqi |
|---|---|
| Qauv | SC7H190.2G3 |
| Rated zog (kW/rpm) | 140/1800 |
Zuag qhia tag nrho Dimensions
| Parameter | Tus nqi |
|---|---|
| Ntev (mm) | 6320 |
| Dav (mm) | 2390 |
| Qhov siab (mm) | 3200 |
| Wheelbase (mm) | 3230 |
| Yam tsawg kawg nkaus hauv av clearance (mm) | 440 |
Khoom Description
vim li cas xaiv peb
'Nws yog qhov txaus los ua haujlwm nrog Creative. amazingy koom, yooj yim rau kev sib txuas lus nrog. teb nrog iterations tom ntej, thiab ua haujlwm zoo nkauj.
Quality Assurance:
Cov khoom tseem ceeb (lub cav, kis tau tus mob) ntawm tag nrho lub tsheb yog lav rau kev hloov hauv ib xyoos tom qab xa khoom.
Export Experience:
Nrog 7 xyoo ntawm kev paub nyob rau hauv exporting tiav tsheb thiab accessories, peb tau exported rau ntau tshaj 30 lub teb chaws.
Tom qab-Kev Pabcuam Muag:
Kev txhawb nqa, kev txhawb nqa kev yees duab nyob deb, kev pabcuam kev tsav tsheb hauv zos, muab kev pabcuam tsheb thauj khoom mus txog 10 xyoo, ua kom koj tsis tas yuav txhawj xeeb txog qhov tsis tuaj yeem tau txais cov khoom qub tsheb.
Customization Muaj peev xwm:
Peb tuaj yeem kho raws li koj qhov kev xav tau tshwj xeeb.
Cov neeg siv khoom tawm tswv yim thiab cov ntsiab lus xa khoom
FAQ
Q: Peb yog leej twg?
A: YALONG'S lub hauv paus chaw haujlwm nyob hauv Shandong, Suav. Txij li xyoo 2018, peb tau muag rau Africa (30.00%), South Asia (20.00%), Southeast Asia (20.00%), Middle East (20.00%), thiab kev lag luam hauv tsev (10.00%). Muaj li ntawm 11-50 tus neeg nyob hauv peb lub hoobkas.
Q: Vim li cas koj yuav tsum yuav los ntawm peb tsis yog los ntawm lwm tus neeg muag khoom?
A: Peb ua raws li kev lag luam lub tswv yim ntawm "zoo ua ntej, cov neeg siv khoom ua ntej" thiab tau txais kev ntseeg siab thiab kev txhawb nqa ntawm cov neeg siv khoom hauv tsev thiab txawv teb chaws nrog cov khoom zoo, kev pabcuam zoo, thiab cov nqi muag khoom tsim nyog. Lub teb chaws xa tawm tseem ceeb thiab cheeb tsam yog: Africa, Southeast Asia, Central Asia, South America thiab lwm qhov chaw. Peb muaj cov kws tshaj lij tsim thiab tsim pab pawg uas tuaj yeem tsim thiab tsim lub tsheb uas tsim nyog rau koj raws li koj xav tau; nplua nuj export kev, paub txog cov txheej txheem export thiab yuav tsum tau ntawv pov thawj ntawm ntau lub teb chaws, thiab tuaj yeem xa koj lub tsheb rau koj sai dua; Peb Nrog thawj - cov cuab yeej tsim khoom hauv chav kawm, cov cuab yeej muaj zog thiab cov txheej txheem kev sim siab, peb tuaj yeem muab cov tsheb ruaj khov thiab txhim khu kev qha rau koj.
Q: Peb tuaj yeem lav qhov zoo li cas?
A: Ib txwm ua ntej- qauv tsim ua ntej ntau lawm; Ib txwm soj ntsuam zaum kawg ua ntej xa khoom;
Q: Vim li cas koj yuav tsum yuav los ntawm peb tsis yog los ntawm lwm tus neeg muag khoom?
A: YALONG yog ib lub tuam txhab tshwj xeeb hauv kev xa tawm cov tsheb thauj khoom siv, muab ib qho kev pabcuam - nres xws li kev yuav khoom, kev npaj, tshuaj xyuas, tshaj tawm kev lis kev cai, kev thauj mus los, thiab kev lis kev cai ntawm qhov chaw rau kev lis kev cai txawv teb chaws.
Q: Koj li cas tom qab - pab pawg muag khoom muag?
A: Tsis yog peb tsuas yog lub tuam txhab lag luam xwb, tab sis peb muaj pab pawg kws tshaj lij thiab cov neeg ua haujlwm tu neeg ua haujlwm uas tau ua haujlwm hauv kev tsim kho tshuab rau ze li ntawm 20 xyoo. Peb tuaj yeem muab kev pabcuam online rau koj raws sijhawm, lossis xa mus rau Tuam Tshoj Manufacturing network rau kev txhawb nqa thaum xav tau. Hot Tags: howo 6x4 pob tseg tsheb rau mining, Tuam Tshoj howo 6x4 pob tseg tsheb rau mining manufacturers, lwm tus neeg Hot Tags: 6x4 howo mining pob tseg tsheb, Tuam Tshoj 6x4 howo mining pob tseg tsheb manufacturers, lwm tus neeg, hnyav taub hau tsheb, hnyav tsheb laij teb, Howo 10 Log Tipper Truck, HOWO, Durable li cas Truck Truck
Yalong Vehicles Co. Ltd. yog tsim nyog ntawm koj txoj kev ntseeg siab
Cim npe nrov: xcmg-xs233j ib leeg steel log vibratory txoj kev rau cov menyuam, Tuam Tshoj xcmg-xs233j ib leeg steel log vibratory txoj kev roller manufacturers, lwm tus neeg
